5 Piece Set 108935-85 Plate Load 3600 Ibs Eaton Clutch Kit

Product Categories
Chongming (Guangzhou) Auto Parts Co., Ltd
Contact Now

5 Piece Set 108935-85 Plate Load 3600 Ibs Eaton Clutch Kit

Brand Name : YUNLING

Model Number : 108935-85

Certification : ISO / TS16949

Place of Origin : GUANGZHOU, CHINA

MOQ : 50 PCS ( If we have goods in stock, the MOQ is 5 PCS. )

Price : Negotiable

Payment Terms : T / T; Western Union

Supply Ability : 10000 PCS

Delivery Time : 5-8 work days

Item Type : Clutch Set

Car Application : Kenworth

Number of Springs : 6

Part No. : 108935-85

Plate Load : 3600Ibs

Torque Rating : 1700ft / Ibs

Quality : 100% Tested

Size : 15 1/2''*2''*10

Contact Now

15 1/2''*2''*10 387mm 5-Piece set 108935-85 Eaton Clutch Kit

This clutch assembly is used for . Standard Angled Spring Heavy Duty 15 inch x 2 inch x 10 Clutch Assembly. Clamp load 3600 lbs. 6 Springs Torque rating 1700 ft/lb. Plate Load: 3600Ibs. Ref NO. of the Rear Disc is 128541, the Ref NO. of the Front Disc is 12854, the Ref NO. of the Cover Assembly is 127597-4, and the Ref NO. of the intermediate pressure plate is 113C166. The OE number of this clutch assembly / Eaton Clutch Kit is 108935-85 / C197C369 / 108925-20AM /

Product Information

Production Name
15 1/2''*2''*10 387mm 5-Piece set 108935-85
Type
Clutch Set
OEM
108935-85
SIZE
15 1/2''*2''*10
QTY of Springs
6
Car Make
For
Torque Rating
1700ft / Ibs
Plate Load
3600Ibs
Quality
100% Tested
Payment:
T/T; LC
Condition
New

Detailed Images

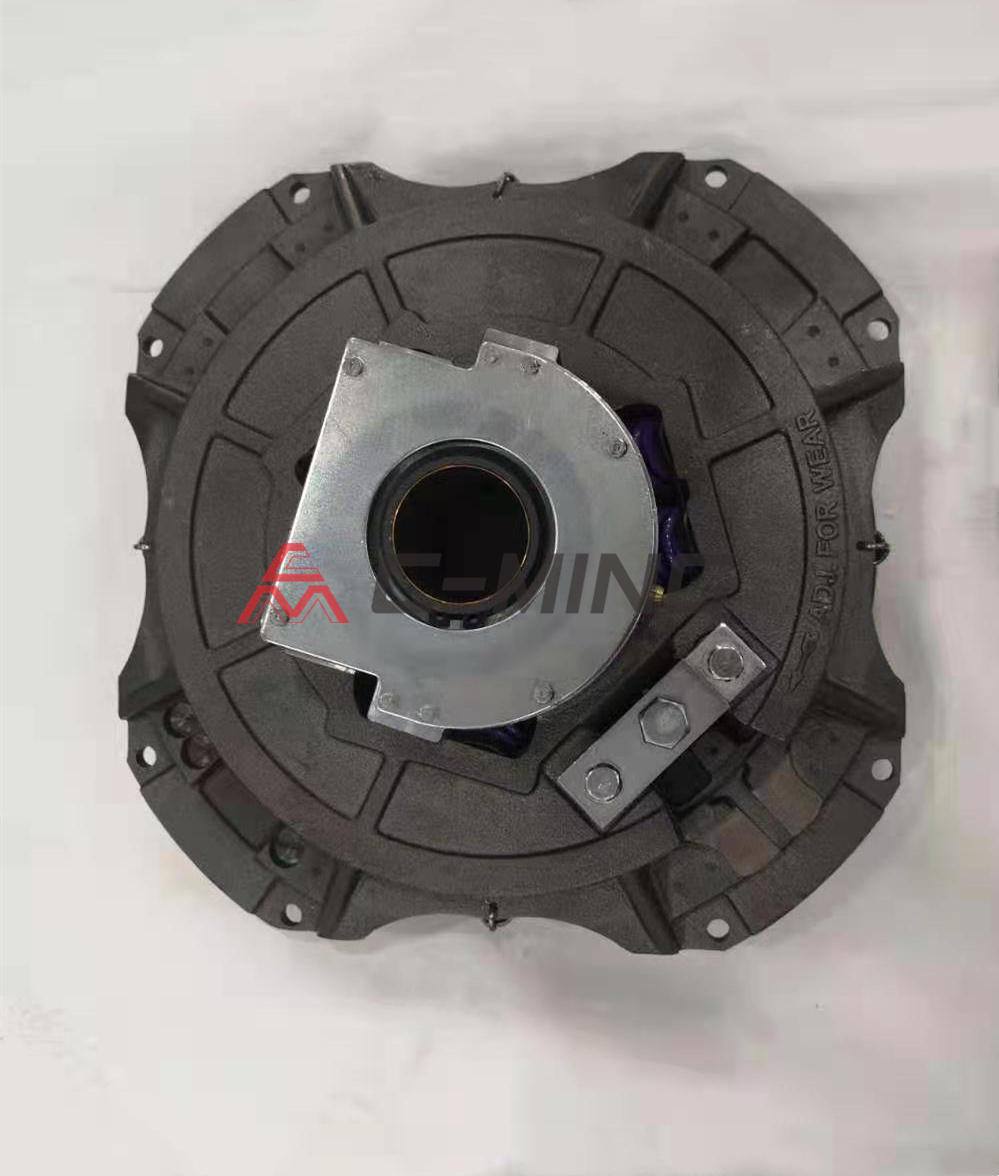

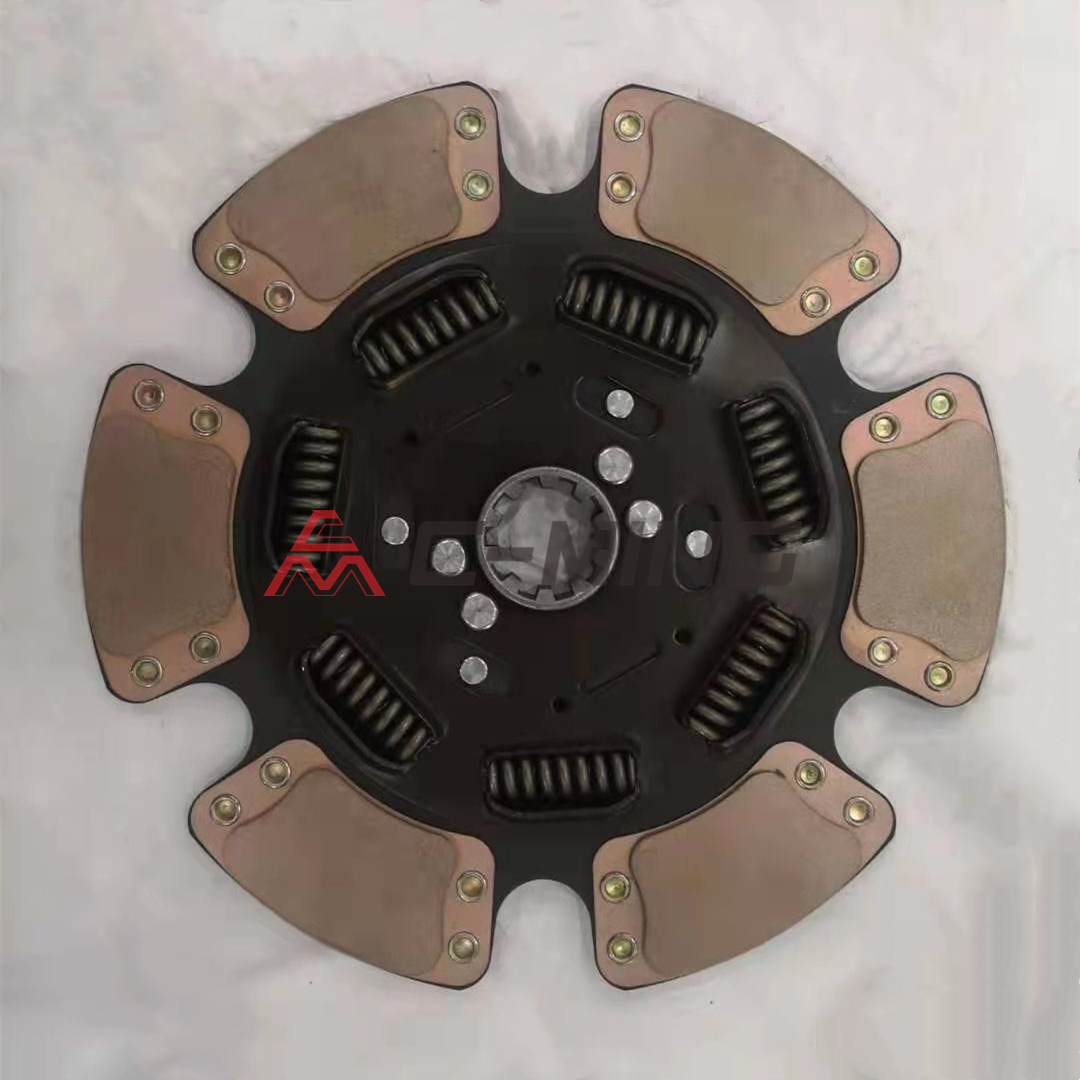

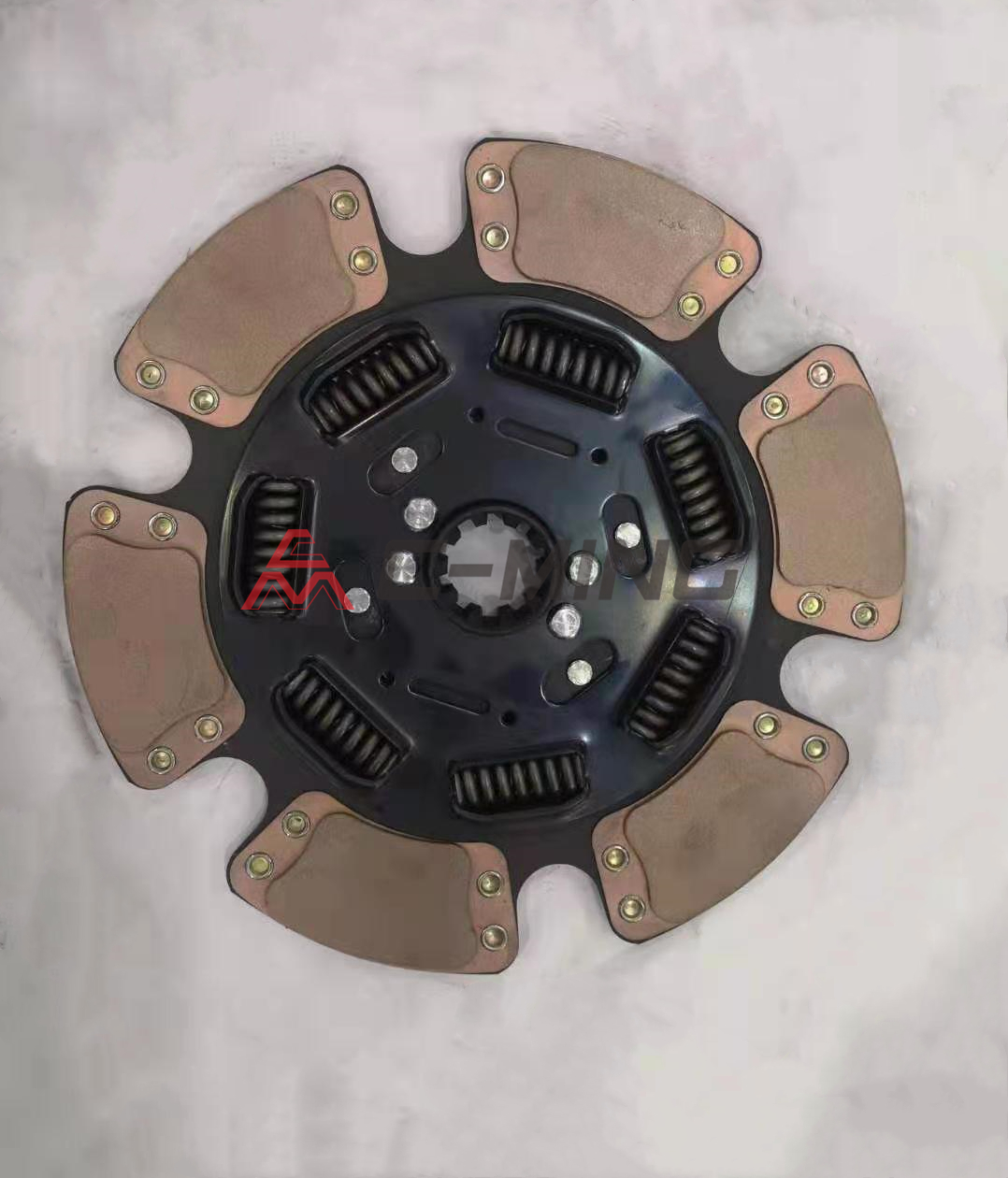

5 Piece Set 108935-85 Plate Load 3600 Ibs Eaton Clutch Kit5 Piece Set 108935-85 Plate Load 3600 Ibs Eaton Clutch Kit5 Piece Set 108935-85 Plate Load 3600 Ibs Eaton Clutch Kit

5 Piece Set 108935-85 Plate Load 3600 Ibs Eaton Clutch Kit

A clutch kit is a selection of parts that are used to replace a broken clutch or upgrade an existing assembly. Each kit comes with a clutch disc and a clutch pressure plate. A flywheel, alignment tool, and release bearing, pilot bearing/bushing, and spline lubricant may also be included.

There are many types of clutch designs pending on the application. Most automotive clutches are a dry single plate clutch with two friction surfaces. No matter the application, the function and purpose of a clutch is to transmit torque from a rotating driving motor to a transmission.

Clutches require a mode of actuation in order to break the transmission of torque. The clutch pedal is a method of leverage to disengage drive from the engine to transmission from within the vehicle. The pedal translates a parabolic swing of the clutch pedal into a linear movement. This linear movement is then translated to movement of the thrust bearing by displacement of either mechanical linkages, cable or hydraulic fluid.
